Security booth
Location:

‹

›

‹

  • Durable steel structure integrated security duty room toll booth guard room
  • Durable steel structure integrated security duty room toll booth guard room

›

Durable steel structure integrated security duty room toll booth guard room
The security booth is a pavilion that protects security personnel from wind and rain. It has the functions of shading, blocking rain, and is practical and beautiful.
Contact us
MESSAGE
Product Specifications
Product Description
feature outer size(mm) 5800*2480*2560
inner size(mm) 5640*2340*2400
folding size(mm) 5800*2480*360
gross weight(kg) 1100
structure side beam for roof Q235B rectangular tube60×60×1.2mm
side beam for bottom Q235B rectangular tube60×140×1.2mm
side beam on each end Q235B rectangular tube40*60×1.2mm
front&rear side frame Q235B rectangular tube40*80×1.2mm
bottom weight capacity Q235B rectangular tube 40×40×1.2mm
hanging head Q235B 108mm*165mm(3m)
folding hinge galvanized hinge 13mm
roof Overall frame protection paint Electrostatic spray/straight white plastic powder
outer roof plate Galvanized sheet 0.4mm
inner ceiling color coating sheet V/910/0.2mm
wall plate insulated glass wool Glass wool 50mm
side wall 50mm Composite board 0.20mm+Glass wool+0.20mm
front&rear baffle 65mm plywood 0.20mm+glass wool(bulk density 28kg)+0.20mm
floor Fireproof glass magnesium floor,thickness:15mm
electricity Electrical wiring must be installed strictly in accordance with moisture-proof regulations, and all electrical
products must comply with CE certification. Connect the circuit according to the circuit engineering
specifications. Indoor inlet wiring: 4 ²
National standard soft copper wire, 1 piece of 20A circuit breaker, socket inlet wire :2.5 ²,
1 piece of single socket with five holes ,1 piece of socket with ten holes ,
1 piece of air conditioning socket, and 1 piece of LED light.
burglar door premium burglar door(white)size:970mm*1970mm
window 920*920 Double glass casement with plastic steel,glass thickness: 4mm(white),Screen window

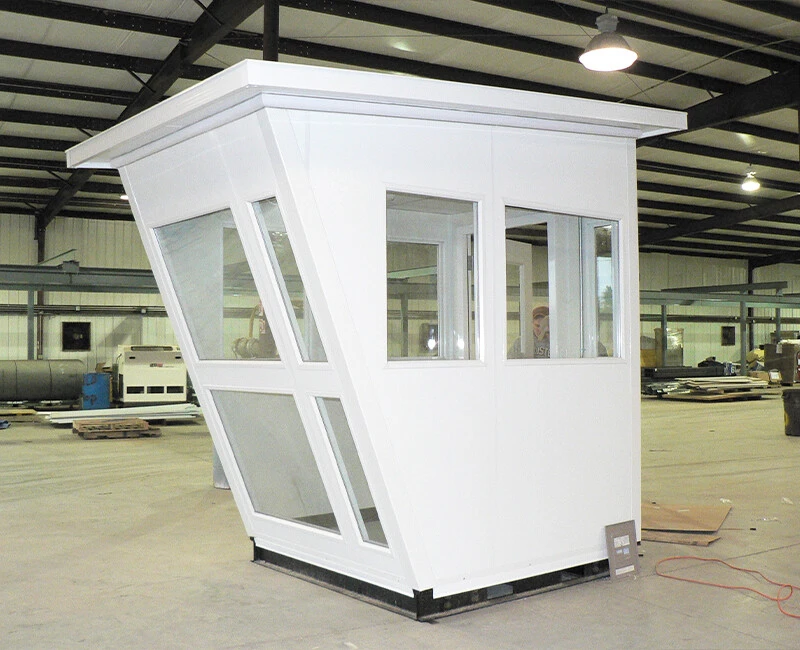

Product Display

1

The security booth is a pavilion that protects security personnel from wind and rain. It has the functions of sunshade, rainproof, practical and beautiful. The security booth is a temporary mobile house used for protection, often seen in squares and communities, companies, factory gates, exhibition hall gates, etc. to protect security personnel from wind and rain.

Detailed description

1. The surface of the booth material is processed by special technology and made with precision. It has unique styles, a wide variety, beautiful and generous, stable and durable; 2. The theme frame is welded with high-quality steel frame as a whole, with high strength and wind pressure resistance; 3. The top material adopts a special waterproof hinged process to completely solve the problem of water leakage; 4. The booth has good thermal insulation; 5. All booths are equipped with air conditioners and other electrical power sockets for easy use.

1. Main column: stainless steel plate pressure forming 1/4-φ160 arc column thickness, and the secondary column also uses stainless steel plate pressure forming rectangular column. and 75*45 rectangular tube to make security booth
2. Window: stainless steel profile, white glass, door frame also made of stainless steel plate press molding.
3. The outer sealing plate is made of stainless steel matte plate, and the inner sealing plate is made of beige color steel plate.
4. The top of the booth is made of stainless steel plate pressure welded into a circular arc, the roof is folded with galvanized plate, and sealed with neutral glue.
5. The indoor ceiling is made of wooden board foundation and aluminum-plastic plate, and the power supply is equipped with two sets of round 21W energy-saving lamps, a set of leakage protection switch, and an air-conditioning switch.
6. The inner wall of the booth is made of skeleton, with 9mm thick wooden plywood on both sides, and the bottom plate is made of iron square tube as the foundation, with thick galvanized plate laid, and non-slip floor mats laid on it.

Optional materials

‌ Colored steel security booth, stainless steel security booth, aluminum alloy security booth.
Security booths can be divided into round security booths, square security booths, semi-elliptical security booths, elliptical security booths, octagonal security booths, etc. according to their appearance.

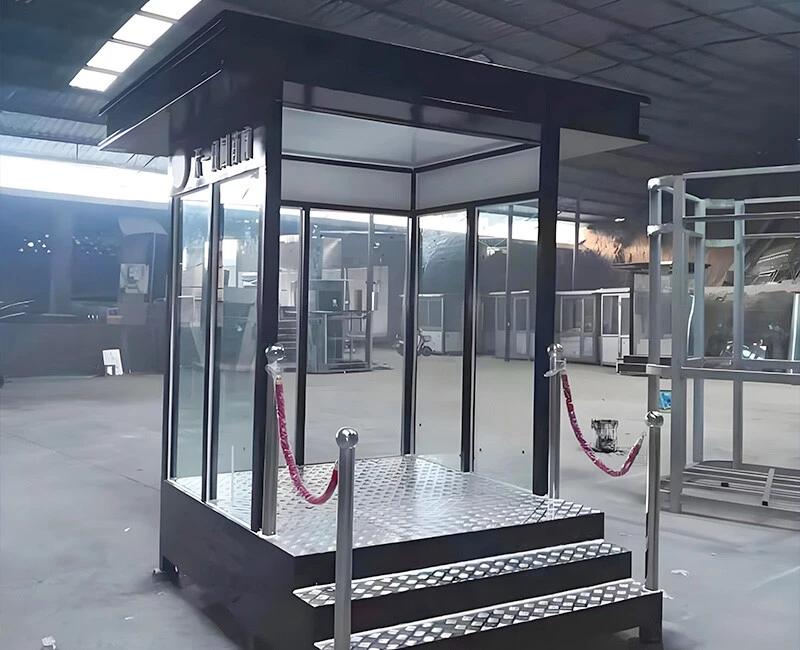

Product Display

1
FAQ

Q1： Do you provide on-site installation services?
A： We provide very detailed installation instruction drawings and videos for each project.
For large projects, we will have both installation workers and supervisors on site. The cost of on-site service should be negotiated with the customer
Q2： How to control your product quality?
A： 1. Design quality: Consider possible problems in advance and provide high-quality design solutions.
2. Raw material quality: Select qualified raw materials
3. Production quality: Precise manufacturing technology, experienced workers, strict quality inspection.
Q3： What is your delivery time?
A： Normally, the delivery time is 7-10 days after receiving the deposit. For large orders, the delivery time should be negotiated.
Q4：How to deal with quality issues?
A： The warranty period is 2 years. During the warranty period, will be responsible for all quality problems caused by our production.
Q5： Does your product have a defined lifespan? If so, how long?
A： Under normal climate and environment, the service life of container house steel frame is 20 years.
